Mezzanine Lift 200

UL Listed Elevator/Dumbwaiter controller. (UL#233908)

All of our Mezzanine Lifts use our Patented Stackable Shaft. (PATENT No. US 6,167,670 B1)

CARRYING CAPACITY: 200 lbs

MAXIMUM CAR SIZE: 30″ x 30″ x 30″ High

NOTE: Custom Sized Units available please call for prices.

**Discuss custom options with your Project Manager**

INSTALLATION: Dumbwaiter installs in as little as 1 hour

WARRANTY: 3 year commercial warranty.

INCLUDED:

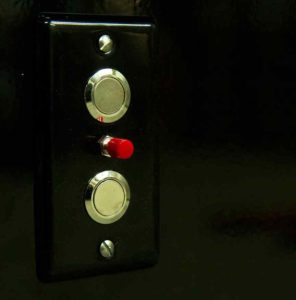

• ​Call / send buttons, door locks, and door safety switches.
• Powder-coated rail assembly, trolley, and car.

MOTOR OPTIONS:

• Bottom or top motor mount.
• 3/4 HP – 220 or 110 volt motor.​
• ​240 volt – 3/4 HP 50 Hz motors for European markets available.

UNIT OPTIONS:

• Diamond plate siding available.
• ​​Stainless steel units available.
• Floor loading units available.

CAR OPTIONS:

• Dumbwaiter car can be open on any of 3 sides, except where the rails are mounted, at no additional charge.
• ​Powder coated car panels available.
• Stainless steel cars available.
• Car shelves available.
• In car dome light available.

GATE & DOOR OPTIONS:

• Bi-parting car gates available.

CALL STATION OPTIONS:

• Keyed On/Off lock allows you to lock the dumbwaiter to restrict access to unauthorized personnel.
• Car here lights available.
• Designer push button plates available.

SAFETY FEATURES:

• ​Adjustable limits.
  NOTE: The limits are preset to your specs, but are easily adjustable in your home.
• ​All low voltage wiring is prewired with quick-connect plugs for easy installation.
• ​Size 40 roller chain. (3125 lbs tensile breaking strength)
• Emergency Kill Switch available.
• ​Top and bottom final limits available.
• ​ASME B 20.1 package available.
• Pillow block top fixture.

Mezzanine Lift 200

UL Listed Elevator/Dumbwaiter controller. (UL#233908)

All of our Mezzanine Lifts use our Patented Stackable Shaft. (PATENT No. US 6,167,670 B1)

CARRYING CAPACITY: 200 lbs

MAXIMUM CAR SIZE: 30″ x 30″ x 30″ High

NOTE: Custom Sized Units available please call for prices.

**Discuss custom options with your Project Manager**

INSTALLATION: Dumbwaiter installs in as little as 1 hour

WARRANTY: 3 year commercial warranty.

INCLUDED:

• ​Call / send buttons, door locks, and door safety switches.
• Powder-coated rail assembly, trolley, and car

MOTOR OPTIONS:

• Bottom or top motor mount.
• 3/4 HP – 220 or 110 volt motor.​
• ​240 volt – 3/4 HP 50 Hz motors for European markets available.

UNIT OPTIONS:

• Diamond plate siding available.
• ​​Stainless steel units available.
• Floor loading units available

CAR OPTIONS:

• Dumbwaiter car can be open on any of 3 sides, except where the rails are mounted, at no additional charge.
• ​Powder coated car panels available.
• Stainless steel cars available.
• Car shelves available.
• In car dome light available.

GATE & DOOR OPTIONS:

• Bi-parting car gates available.

CALL STATION OPTIONS:

• Keyed On/Off lock allows you to lock the dumbwaiter to restrict access to unauthorized personnel.
• Car here lights available.
• Designer push button plates available.

SAFETY FEATURES:

• ​Adjustable limits.
  NOTE: The limits are preset to your specs, but are easily adjustable in your home.
• ​All low voltage wiring is prewired with quick-connect plugs for easy installation.
• ​Size 40 roller chain. (3125 lbs tensile breaking strength)
• Emergency Kill Switch available.
• ​Top and bottom final limits available.
• ​ASME B 20.1 package available.
• Pillow block top fixture.

Mezzanine Lift 200 Price

2 Stop Mezz-Lift 200 Commercial Dumbwaiter $9500.00

3,4,5 and 6 Stop Mezz-Lift 200 units available please call for prices.

THE ABOVE PRICES DO NOT INCLUDE THE COST OF SHIPPING OR SALES TAX (when required)
